Joint actuators, model not named
The motor units that move each joint; the maker does not give them a model name.
A kind of part, not one product. The robot company does not say which model or whose it is. So there is no single price; the rough figure is what comparable products cost.
- 1 of 18
- robots in the database
- Not named
- made by
- Body
- body part
Why this price

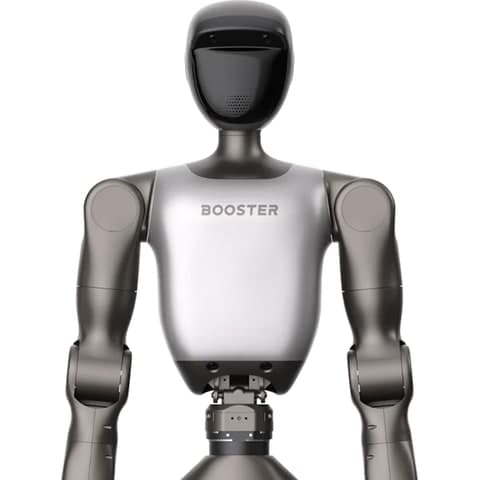

Booster does not name or sell the T2's joint actuators, so this is not their price. It is the price of comparable joint actuators a builder can buy, from about US$300 to US$400 for wrist and head size units around 22 to 25 Nm, up to about US$900 for leg size units with about 120 Nm of peak torque. None of them quite reach the T2's 135 to 144 Nm hip and knee figures, so a T2-class leg joint could cost more.
Our own figure, not a price from any company.
Based on: CubeMars, AK80-64 KV80 Robotic Actuator (cubemars.com)
How to get it
The robot companies do not say who makes this part, so it cannot be ordered as such. Comparable parts you can buy, with their prices, are listed below.
Comparable parts you can buyNot the confirmed part
4 products, scroll sideways
Products on public sale that do the same job, with why each is similar and where to buy it. None is confirmed to be the part inside these robots.
ROBSTRIDE04 QDD 120Nm Dual-Encoder CAN Robot Joint Motor
Close matchby RobStride
120 Nm peak, 40 Nm rated, 9:1 planetary, two encoders, 1.42 kg, CAN
Why it's similar. A leg joint motor with 120 Nm peak torque from a fast inner motor and planetary gearing, close to the T2's hip and knee joints, though a little below their 135 to 144 Nm.
Where to buy
OpenELABEUR 254.75 incl. VAT, about US$295, pre-orderBuy
RMD-X8-P20-120-E
Close matchby MyActuator
120 Nm peak, 43 Nm rated, 19.6:1 planetary, 1.40 kg, EtherCAT
Why it's similar. A 120 Nm peak planetary actuator with dual absolute encoders, of the kind used in many humanoid legs and waists.
Where to buy
- OpenELABEUR 587.95 incl. VAT, about US$680Buy
AK80-64 KV80 Robotic Actuator
Close matchby CubeMars
120 Nm peak, 48 Nm rated, 64:1 planetary, 850 g, CAN
Why it's similar. A compact 120 Nm peak actuator with gearbox, encoder and driver built in, a match for the T2's bigger joints in force though with much higher gearing.
Where to buy
- Global
CubeMars official storeUS$889.90Buy
A fuller write-up of this part, with its numbers, price and trade-offs, has not been written yet. How we verify
